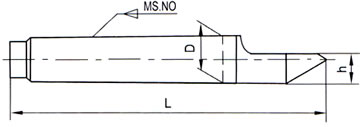

Carbide half notched centers
|
Model |
Morse taper number |
D(mm) |
h(mm) |
L(mm) |
Wt(kg) |
accuracy(mm) |
| DCHC1 |
1 |
12.065 |
7.6 |
80 |
0.054 |
0.010 |
| DCHC2 |
2 |
17.780 |
11 |
100 |
0.143 | |
| DCHC3 |
3 |
23.825 |
15.05 |
125 |
0.323 | |
| DCHC4 |
4 |
31.267 |
20.8 |
160 |
0.703 | |
| DCHC5 |
5 |
44.399 |
29.35 |
200 |
1.738 | |
| DCHC6 |
6 |
63.348 |
41.9 |
270 |
4.925 | |
| DCHC7 |
7 |
83.061 |
53.78 |
360 |
8.260 |
