J41 Tap
chucks
This device is consisted of a tap chuck and tap collets.The
chuck has compensating device for thread pitch.Collet chuck has
overload torque protection device,which avoid tap bresking.In order
to get the different release torques for different diameter
taps,just adjust nuts.This device is most applicable to tap working
on Drill,lathe,boring machine,milling machine and CNC machine center
and so on.
|

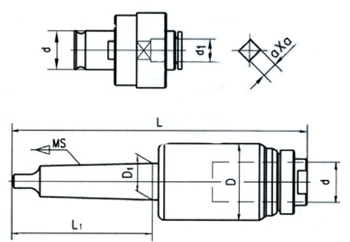

Model |
Shank taper |
D |
D1 |
d |
L |
L1 |
Tapping range |
Nm |
Wt |
|
J4112－MS2 |
MS2 |
46 |
17.780 |
19 |
75 |
171.5 |
M3-M12 |
25 |
1.08 |
|
J4112－MS3 |
MS3 |
23.825 |
94 |
191 |
1.28 |
|
J4112－MS4 |
MS4 |
31.267 |
117.5 |
216 |
3.00 |
|
J4116－R8 |
R8 |
31.750 |
101.6 |
193.6 |
M3-M16 |
46.3 |
1.71 |
|
J4116－MS2 |
MS2 |
17.780 |
75 |
171.5 |
1.08 |
|
J4116－MS3 |
MS3 |
23.825 |
94 |
191 |
1.61 |
|
J4116－MS4 |
MS4 |
31.267 |
117.5 |
216 |
3.00 |
|
J4124－MS3 |
MS3 |
66 |
23.825 |
30 |
94 |
227 |
M12-M24 |
150 |
3.20 |
|
J4124－MS4 |
MS4 |
31.267 |
117.5 |
252 |
3.60 |
|
J4124－MS5 |
MS5 |
44.399 |
149.5 |
284 |
4.50 | |
|
12 series tapping range |
M3 |
M4 |
M5 |
M6 |
M8 |
M10 |
M12 |
|
67 series d1Xa(mm) |
4X3 |
4X3 |
5X3.8 |
6X5 |
6X5 |
8X6.3 |
9X7.1 |
|
83 series d1Xa(mm) |
2.24X1.8 |
3.15X2.5 |
4X3.15 |
4.5X3.55 |
6.3X5 |
|
24 series Tapping range |
M12 |
M14 |
M16 |
M18 |
M20 |
M22 |
M24 |
|
67 series d1xa(mm) |
9X7.1 |
10.5X8 |
12.5X10 |
14X11 |
16X12 |
18X14.5 |
20X16 |
|
83 series d1xa(mm) |
11.2X9 |
14X11.2 |
14X11.2 |
16.12.5 |
18X14 | |
